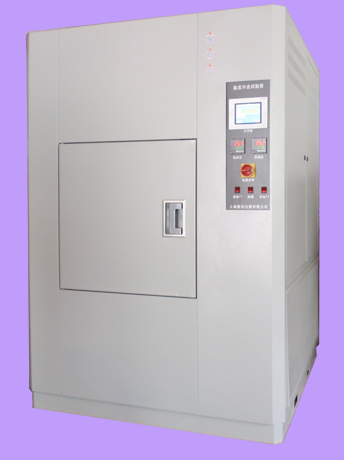

Thermal Shock Chamber

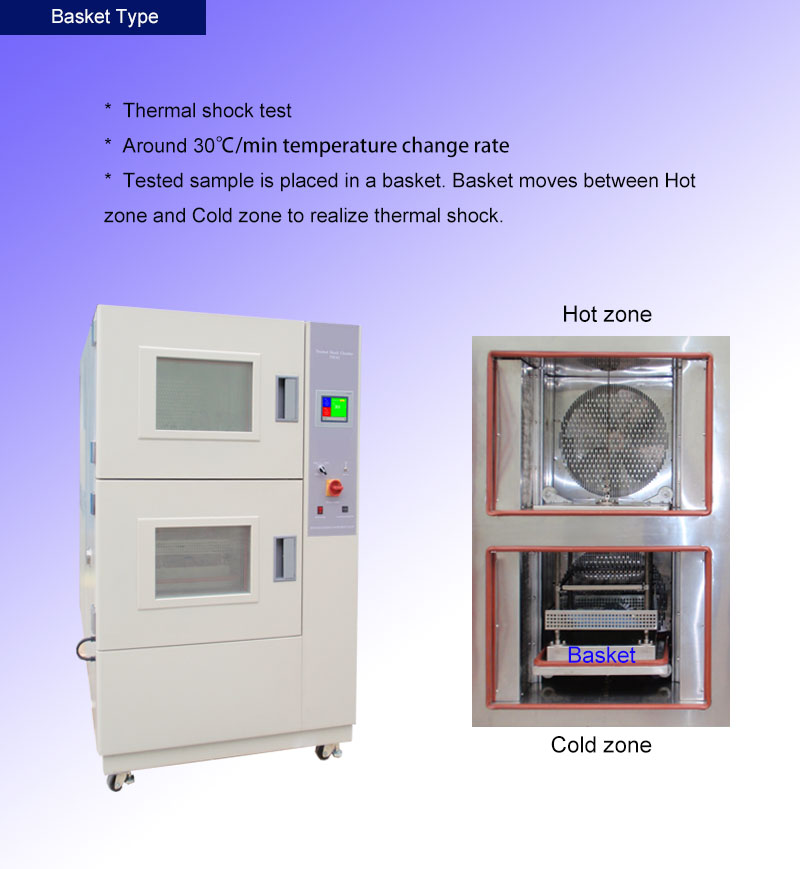

Model

CTS01

CTS03

CTS05

1.1   Test chamber size (D×W×H)

470×470×470 mm

680×680×650 mm

780×780×850 mm

1.2   Basket size (D×W×H)

350×350×300 mm

580×470×470 mm

680×680×700 mm

1.3   External size (D×W×H)

1800×1100×1800 mm

2000×1360×2000 mm

2300×1580×2200 mm

1.4 Hot zone temperature range

Ambient temperature ～ +180℃

1.5 Cold zone temperature range

Ambient temperature ～ -70℃

1.6 Test zone temperature range

-50 ～ +120℃

1.7 Temperature recover time

≤5mins

1.8   Temperature setting accuracy

0.1   ℃

1.9   Basket weight capacity

10Kg

1.10 Refrigerating mode

air cooling

1.11 Power

380V±38V,   50Hz, 3P

1.12 Power supply

10Kw

13Kw

15Kw

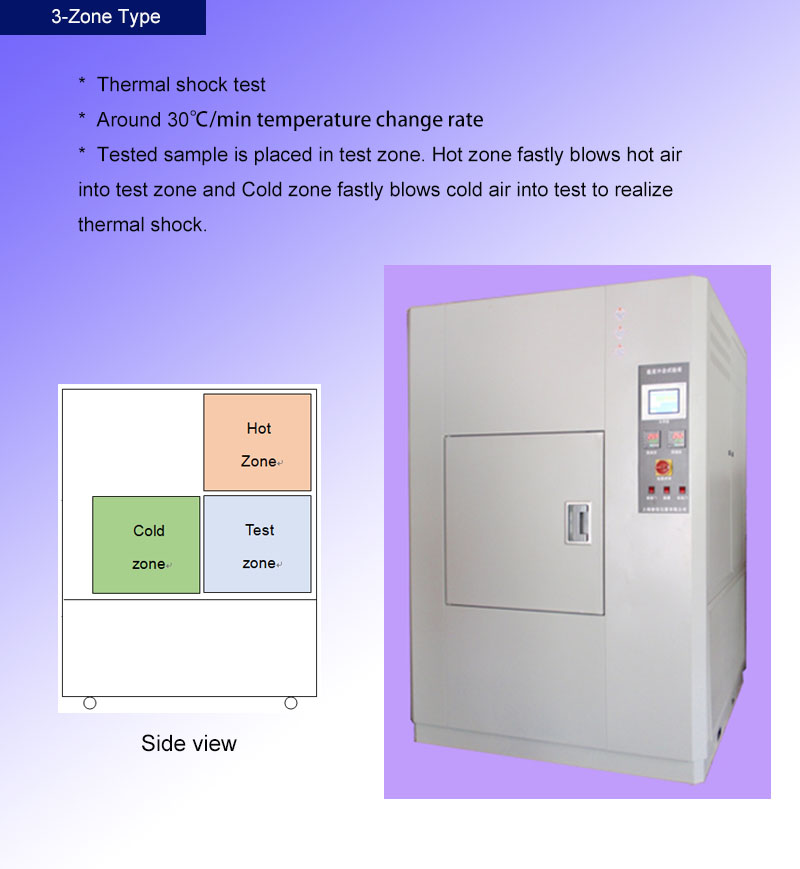

Model

CTS01

CTS03

CTS05

1.1   Test chamber size (D×W×H)

470×470×470 mm

680×680×650 mm

780×780×850 mm

1.2   External size (D×W×H)

1800×1100×1800 mm

2000×1360×2000 mm

2300×1580×2200 mm

1.3 Hot zone temperature range

Ambient temperature ～ +180℃

1.4 Cold zone temperature range

Ambient temperature ～ -70℃

1.5 Test zone temperature range

-50 ～ +120℃

1.6 Temperature recover time

≤5mins

1.7   Temperature setting accuracy

0.1   ℃

1.8 Refrigerating mode

air cooling

1.9 Power

380V±38V,   50Hz, 3P

1.10 Power supply

10Kw

13Kw

15Kw

Test area material

SUS304 stainless steel

Insulation material

Super glass cotton

Seal material

Resistant-to-high-temperature silicone rubber

Controller

 LCD   touch screen programmable temperature control with PID

Work mode

Fix and Programmable

Program volume

Maximum 180 programs; Each   program has maximum 99   steps; Each step has maximum 59 hour 59 minutes; Each   program can cycle   or linked;

Test data record

USB Interface. The test data can be   downloaded to U disk through the USB Interface in the EXCEL and curve format.

Remote control
  (optional)

RS232 interface or LAN port

Other electric   parts

SIEMENS and Omron relays

Compressor

France TECUMSEH compressor or

 U.S. Copeland Emerson compressor

Cooling mode

Air cooling

Condenser/ evaporator

Condenser/ Evaporator

Other cooling   parts

expansion relief valve, electromagnetic   control valve, drying filter, pressure controller and pressure controller

Heater

Nickel-chromium alloy heating wire, and electric relay with   over-heat protection

Sensor

Pt100 platinum resistance temperature sensor

Air circulation

Stainless steel long-axial fan compulsory circulation

Safety parts

Over-heat protection, Over-load of fan protection, Over-load of   compressor protection, Short-circuit protection, Lack phrase protection,   Ground protection

Other structure parts

φ50mm port hole， 2 levels of stainless steel try，Defrosting window，Light

Power supply

220±22V or 380±38V
