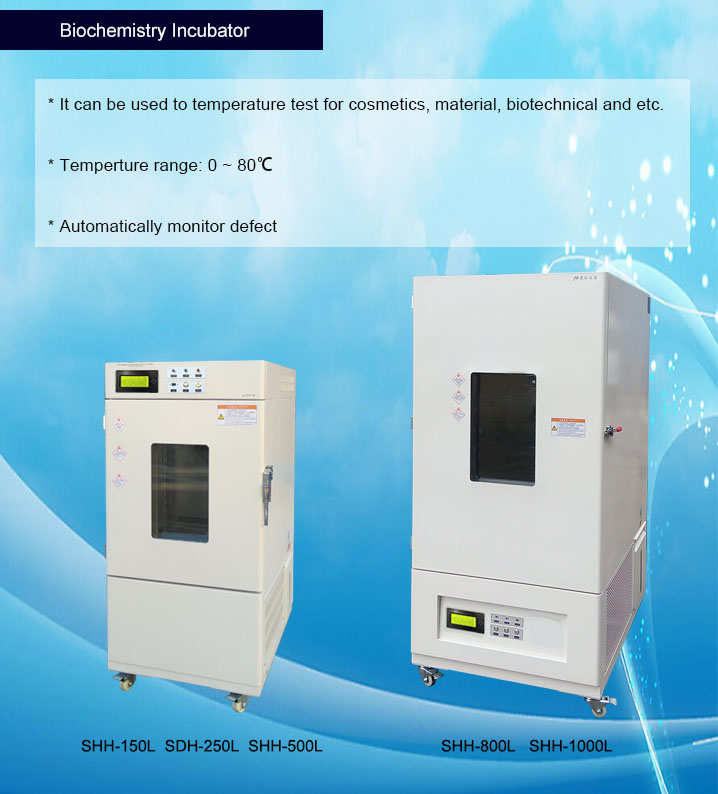

Biochemistry Incubator

Test area size   (mm)

(D×W×H)

470×500×600

600×550×750

720×720×950

850×750×1200

900×850×1300

Test area capacity

150L

250L

500L

765L

1000L

External size (mm)

(D×W×H)

880×680×1240

1000×680×1550

1150×860×1800

1300×920×1900

130×1020×2000

Temperature range

0 ～ 80℃

Temperature fluctuation

  ±0.5℃

Power supply

220V±22V   or   110V±11V

Power

1.5kw

2kw

2.5kw

3.0Kw

3.5kw

Test area material

SUS304 stainless steel

Isolation material

Superfine glass wool

Window

Automatically defrosting window on   the door

Controller

Intellectual temperature controller
  with PID control which automatically corrects the temperature deviation

Operation mode

Fix and Constant

Temp. sensor

PT100 temperature sensor

Compressor

 "SECOP" hermetic   compressor imported from Germany

Cooling mode

Air cooling

Condenser

Domestically-made condenser with cooling blower

Evaporator

Domestically-made evaporator

Other cooling parts

electric valve, oil filter

Safety protection

Overheat, leakage, overpressure, overload, shout circuit protector

Other parts

diameter ф50mm  test hole
  Movable stainless steel shelf (2 levels)
  Test area lamp, View window
